Image QC

This notebooked is an example of image QC, using the Rohban et al. (2017) data. We will perform filtering of images and show how we can additionnally filter single-cell profiles in the same way. The overall idea is to use a kNN-based approach removes low quality images. Let’s jump right in! First, we load some packages.

import warnings
import numpy as np
import scmorph as sm
import scanpy as sc
import pandas as pd
from plotnine import *
from tqdm.auto import tqdm
import matplotlib.pyplot as plt

plt.rcParams["figure.dpi"] = 300  # High resolution figures

Then, we define a function to load in the data we need and use it.

# Function to load single-cell and image-level data
def load_data():
    with warnings.catch_warnings():  # Catch warning that is addressed by `obs_names_make_unique``
        warnings.filterwarnings("ignore", category=UserWarning)
        qcadata = sm.datasets.rohban2017_imageQC()
    qcadata.obs_names_make_unique()
    # Set plate to category for better plotting
    qcadata.obs["Image_Metadata_Plate"] = qcadata.obs["Image_Metadata_Plate"].astype(
        "category"
    )

    # Load single-cell dataset
    scadata = sm.datasets.rohban2017_minimal()

    return scadata, qcadata


# Load in data
scadata, qcadata = load_data()

What does the image-level data look like? It contains some metadata in obs, as shown here:

qcadata.obs.sample(5, random_state=2025)

	Image_Metadata_Plate	Image_Metadata_Site	Image_Metadata_Well
1670-4	41754	6	h18
1466-1	41755	9	g19
2110-4	41754	5	j19
3182	41757	8	o18
2306	41757	5	k17

And it has 505 features, some examples of which are shown here:

print("Number of image-level features:", qcadata.shape[1])
qcadata.var.index.to_frame().sample(5, random_state=2025)[0].values

Number of image-level features: 505

array(['Image_Texture_InfoMeas2_RNA_10_0',
       'Image_ImageQuality_PercentMinimal_IllumMito',
       'Image_ImageQuality_Correlation_OrigRNA_2',
       'Image_Texture_InfoMeas1_RNA_10_0', 'Image_Granularity_8_DNA'],
      dtype=object)

And on the side of the single-cell features, we have 12,352 cells and 1687 features. Note: this single-cell data only comprises a few of the images for which we have loaded in image-level data. The reason for this is that single-cell data is much bigger, and would require a big download. You may rerun this notebook with the whole single-cell data by substituting sm.datasets.rohban2017_minimal with sm.datasets.rohban2017 at the top of this notebook.

scadata.shape

(12352, 1687)

Identifying batch effects in QC data

In this dataset in particular, image-level data is confounded by batch effects. This is good to check but might not be the case in your dataset.

sm.pp.scale(qcadata)
sm.pp.pca(qcadata)

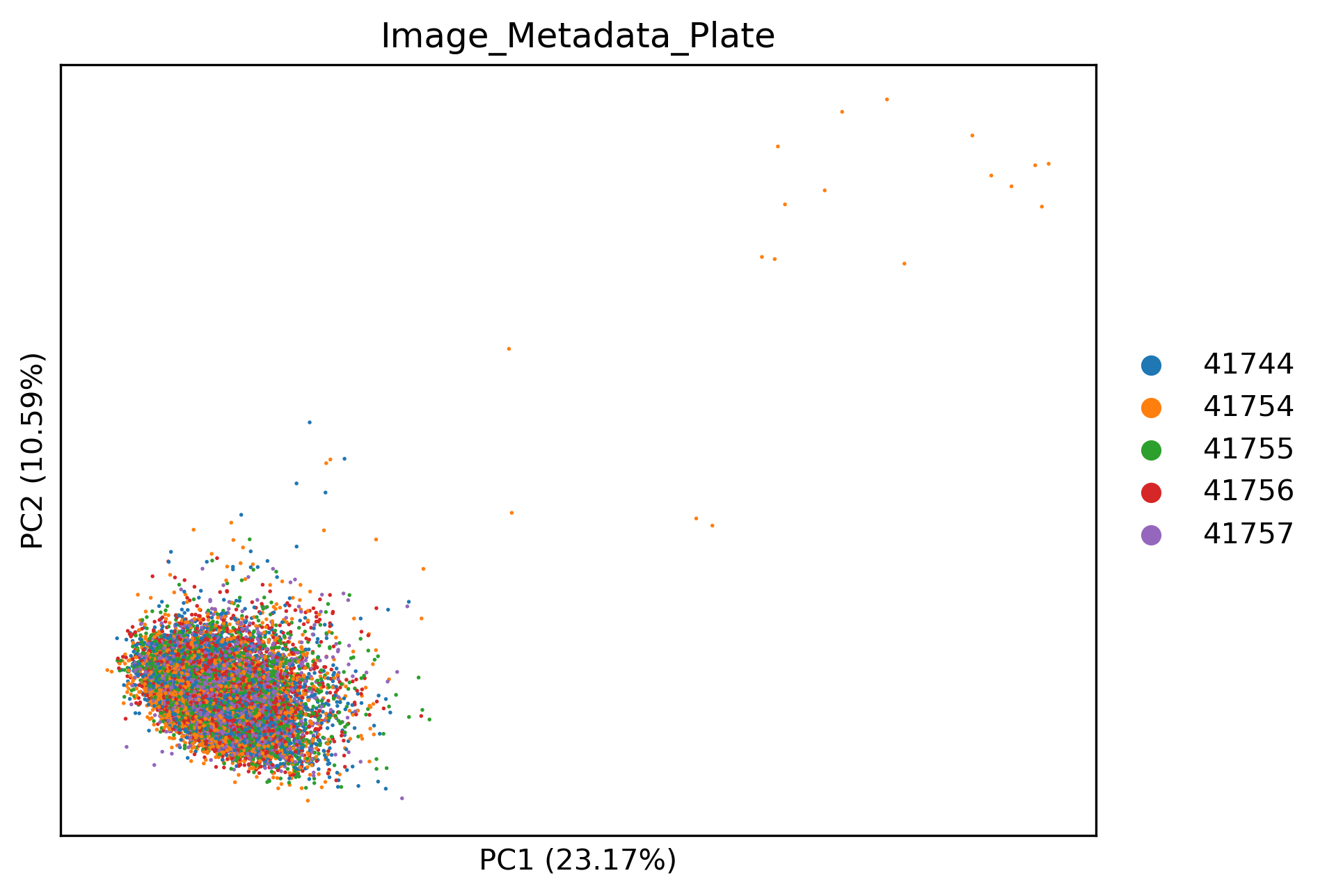

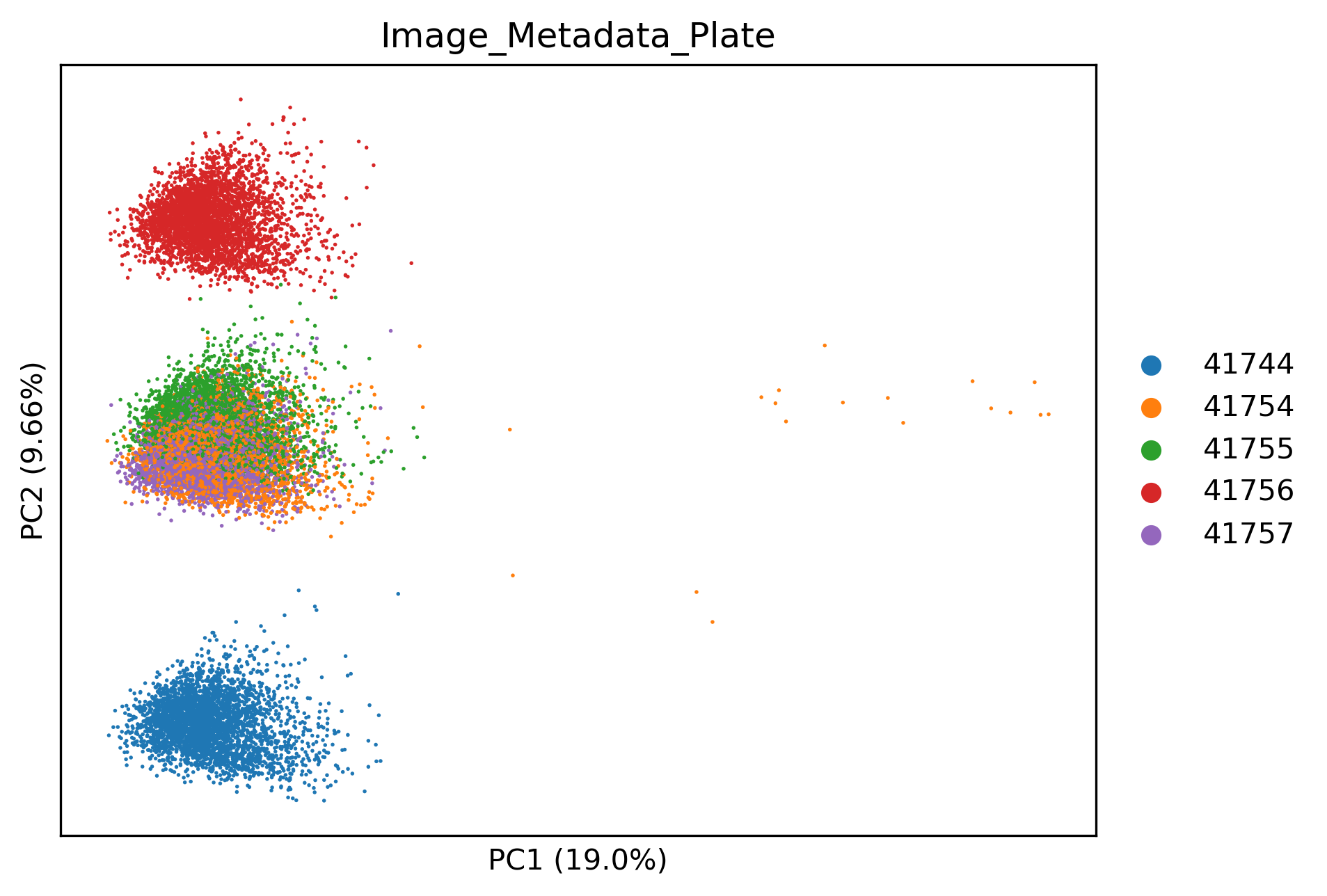

sm.pl.pca(
    sc.pp.subsample(qcadata, fraction=1, copy=True),  # For better plotting
    color="Image_Metadata_Plate",
)

Batch correcting image QC data

Fortunately we can correct batch effects in image-level data the same way we would correct batch effects in single-cell profiles.

scadata, qcadata = load_data()  # Reload raw image-level data
sm.pp.remove_batch_effects(qcadata, "Image_Metadata_Plate")  # Remove batch effects

sm.pp.scale(qcadata)
sm.pp.pca(qcadata)
sm.pl.pca(
    sc.pp.subsample(qcadata, fraction=1, copy=True),  # For better plotting
    color="Image_Metadata_Plate",
)

Image-level QC

We can see that now the image-level profiles are integrated well. Additionally, some images from plate 41754 in the top right seem to be stark outliers. We can see which ones by using:

# Run kNN-based QC, which detects outliers
scadata, qcadata = sm.qc.qc_images_by_dissimilarity(
    scadata, qcadata, filter=False, threshold=0.1
)

# Show which images were the most affected by quality issues
qcadata.obs.sort_values("ImageQCDistance", ascending=False).head(6)

	Image_Metadata_Plate	Image_Metadata_Site	Image_Metadata_Well	ImageQCDistance	PassQC
653-4	41754	6	d01	7.410741	False
656-4	41754	9	d01	7.205057	False
650-4	41754	3	d01	7.043103	False
434-4	41754	3	c01	6.651846	False
439-4	41754	8	c01	6.354570	False
435-4	41754	4	c01	6.348427	False

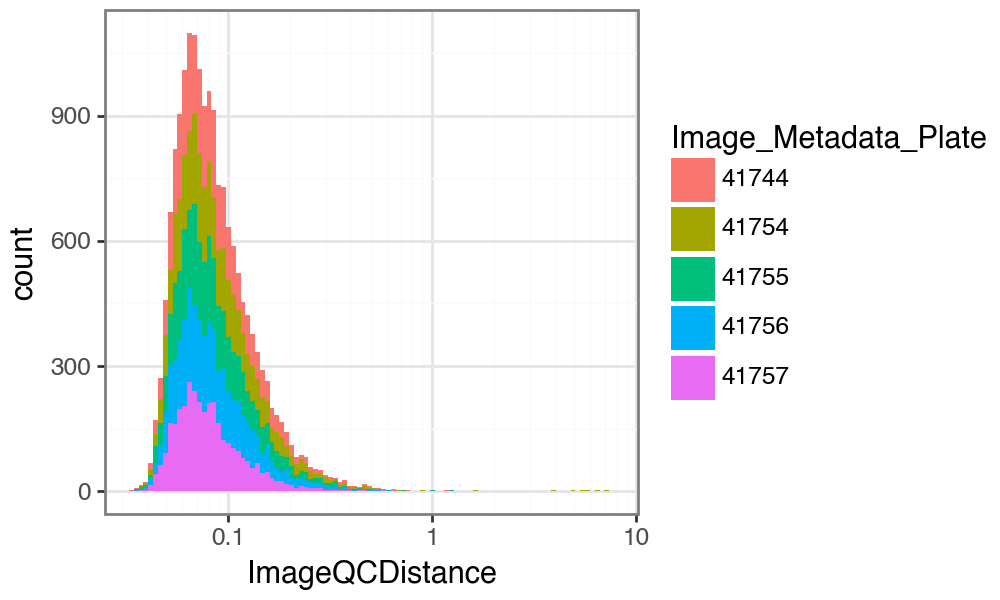

We can also see the distribution of kNN distances, which can inform which threshold to set. Ideally, we are looking for a bimodal distribution of “good” and “bad” images.

p = (
    ggplot(qcadata.obs, aes(x="ImageQCDistance", fill="Image_Metadata_Plate"))
    + geom_histogram(bins=100)
    + scale_x_log10()
    + theme_bw()
    + theme(figure_size=(5, 3))
)
p

This shows that in this dataset, we probably wish to set a more lenient threshold on the image QC distance, so as not to remove too many images. Also, while we do not see a bimodal distribution, we see a long tail of presumably low-quality images.

Note: You should not perform this step blindly. Check images with large distance (i.e. low scores) manually to confirm they are of low quality. Otherwise you risk removing images with strong phenotypes. You should only use this approach if you expect your image artifacts to be stronger than any perturbation effect.

Depending on your requirements and your manual checks, you then decide on a threshold (more on this in a later section). Here, we may for example wish to remove images with a distance greater than 0.8.

# Remove columns previously added to single-cell data during first call to
# qc_images_by_dissimilarity.
scadata.obs.drop(columns=["PassQC", "ImageQCDistance"], inplace=True)

# Run function against, now with different threshold.
scadata, qcadata = sm.qc.qc_images_by_dissimilarity(
    scadata, qcadata, filter=False, threshold=0.8
)  # filter >0.8

We can see how many images are removed by this filter:

qcadata.obs["PassQC"].value_counts()

PassQC
True     17238
False       35
Name: count, dtype: int64

And we can also see which ones were removed on the PCA:

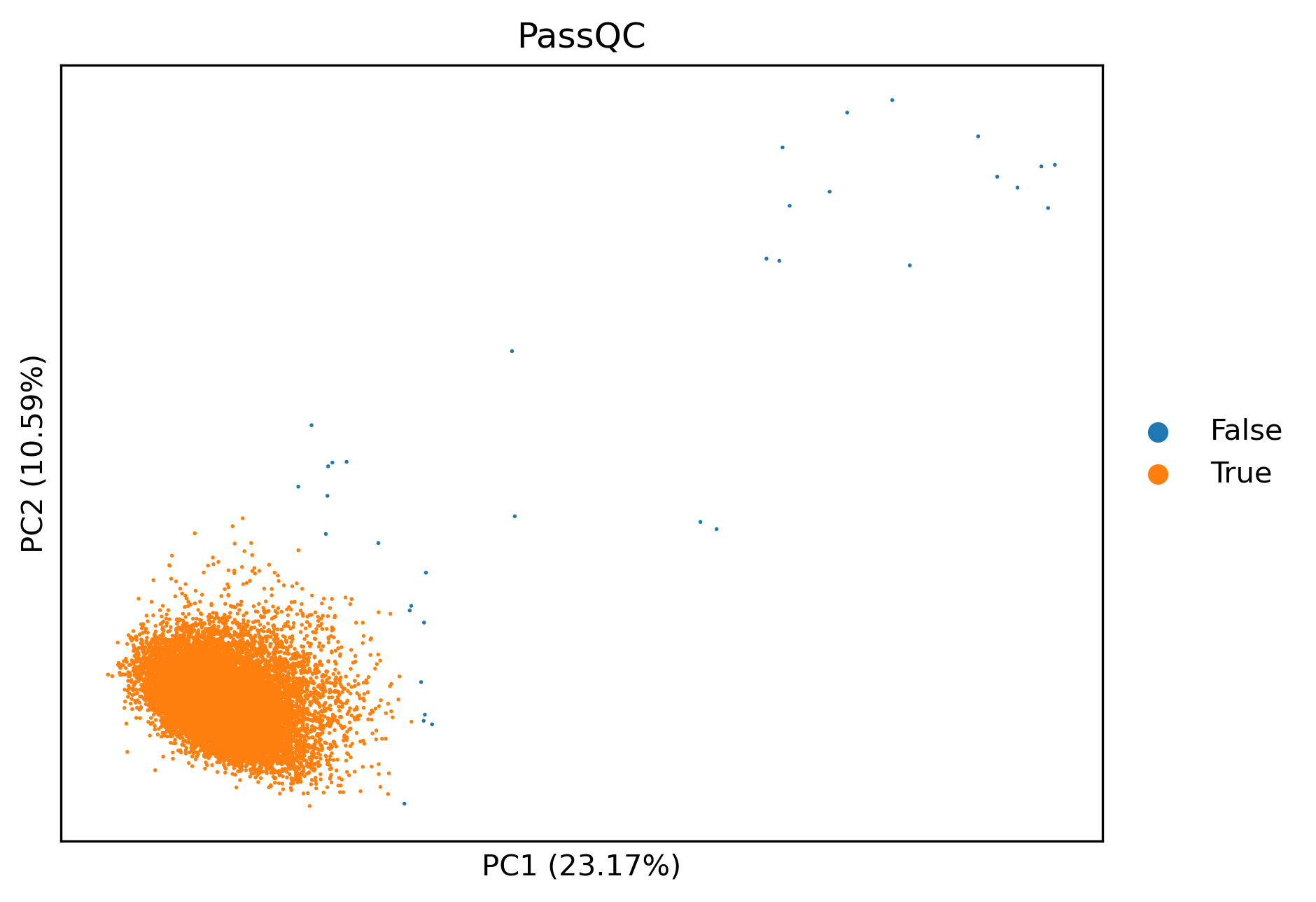

sm.pl.pca(qcadata, color="PassQC")

Now that we know these images may be of low quality, we may also wish to filter our single-cell data accordingly. In fact, the last time we ran the sm.qc.qc_images_by_dissimilarity function, we already did that, by capturing scadata. Let’s look at how many cells are removed by this filtering:

scadata.obs["PassQC"].value_counts()

PassQC
True     12352
False        0
Name: count, dtype: int64

You can see that here no single-cell data was removed. This is because the single-cell data loaded here only contains cells from a subset of images that we have image-level features for (see above).

Overall, this step allows fast, semi-unsupervised removal of low quality images. Keep in mind that must visually inspect outliers, and set a reasonable threshold for your data based on inspection of example images.

Impact of arguments on results

Still have not had enough of image QC? Great! This section will tell you about the impact of the arguments of sm.qc.qc_images_by_dissimilarity. We can see which arguments the function accepts by using the help function:

help(sm.qc.qc_images_by_dissimilarity)

Help on function qc_images_by_dissimilarity in module scmorph.qc.images:

qc_images_by_dissimilarity(adata: anndata._core.anndata.AnnData, qcadata: anndata._core.anndata.AnnData, filter: bool = True, threshold: float = 0.05, **kwargs) -> tuple[anndata._core.anndata.AnnData, anndata._core.anndata.AnnData]
    Perform QC of datasets using unsupervised, kNN-based distance filtering

    Parameters
    ----------
    adata
        Single-cell data
    qcadata
        Image-level data
    filter
        Whether to return filtered or unfiltered (i.e. only annotated) adatas
    threshold
        Threshold for removal
    **kwargs
        Arguments passed to `unsupervised_imageQC`

    Returns
    -------
    Tuple of single-cell and image-level adatas

So we see that the main argument for us to vary is the filtering threshold. However, if we wish for more control over the filtering process, we have to look at the function that is used underneath, sm.qc.images.unsupervised_imageQC, which in turn uses kNN_dists. Lets look at the help function of the latter:

help(sm.qc.images.kNN_dists)

Help on function kNN_dists in module scmorph.qc.images:

kNN_dists(adata: anndata._core.anndata.AnnData, pcs: int = 3, neighbors: int = 10)
    Compute maximum kNN distance (i.e. radius of smallest enclosing circle of kNNs)

    Parameters
    ----------
    adata
        image-level data
    pcs
        Number of PCs to use
    neighbors
        Number of image neigbors in PC

    Returns
    -------
    For each image, how far is the k-th nearest neighbor away in PC space (measured as Euclidean distance)

Aha! So the filtering is based on two hyperparameters: number of PCs and number of neighbors considered. To explain a bit more, the number of PCs is the space in which the distance to other images is computed. The neighbors argument on the other hand determines to which neighbor to determine the distance to. By default these settings are 3 and 10, respectively. Does varying them change the outcome? This is going to require a bit of code now. Feel free to skip ahead to the figure and the text below it, but of course if you fancy understanding how this works, by all means do go through it step by step.

# Range of hyperparameters to test
range_pcs = range(2, 16)
range_neighbours = range(1, 16, 1)
results = []

# Test each one individually
for n_pc in tqdm(range_pcs):
    for n_neigh in range_neighbours:
        dists = sm.qc.images.kNN_dists(qcadata, pcs=n_pc, neighbors=n_neigh)
        # Count how many images pass at various thresholds
        percent_passing = (
            np.mean(dists < 0.5),
            np.mean(dists < 0.8),
            np.mean(dists < 1),
        )
        results.append([n_pc, n_neigh, *percent_passing])

# Collate the results from the loop above into a dataframe, and reshape it to plot with plotnine below
res_df = pd.DataFrame(
    results,
    columns=[
        "pcs",
        "neighbors",
        "pass_0.5",
        "pass_0.8",
        "pass_1.0",
    ],
)
res_df_long = res_df.melt(
    id_vars=["pcs", "neighbors"],
    value_vars=["pass_0.5", "pass_0.8", "pass_1.0"],
    value_name="perc_pass",
    var_name="threshold",
)
res_df_long["perc_pass"] *= 100

(
    ggplot(
        res_df_long, aes(x="pcs", y="neighbors", color="perc_pass", fill="perc_pass")
    )
    + geom_tile()
    + labs(
        x="Number of PCs", y="Number of neighbors", color="% passing", fill="% passing"
    )
    + theme_bw()
    + facet_wrap("~threshold")
    + scale_x_continuous(expand=(0.01, 0.01), breaks=(2, 5, 10, 15, 20, 25))
    + scale_y_continuous(expand=(0.01, 0.01), breaks=(1, 5, 10, 15, 20, 25))
    + theme(
        text=element_text(color="black", family="Arial", size=10),
        axis_text=element_text(),
        axis_title_y=element_text(angle=90),
        axis_line=element_line(color="black"),
        axis_title=element_text(),
        axis_ticks=element_line(color="black"),
        figure_size=(6, 2),
        aspect_ratio=1,
        strip_background=element_blank(),
        strip_text=element_text(weight="bold"),
    )
)

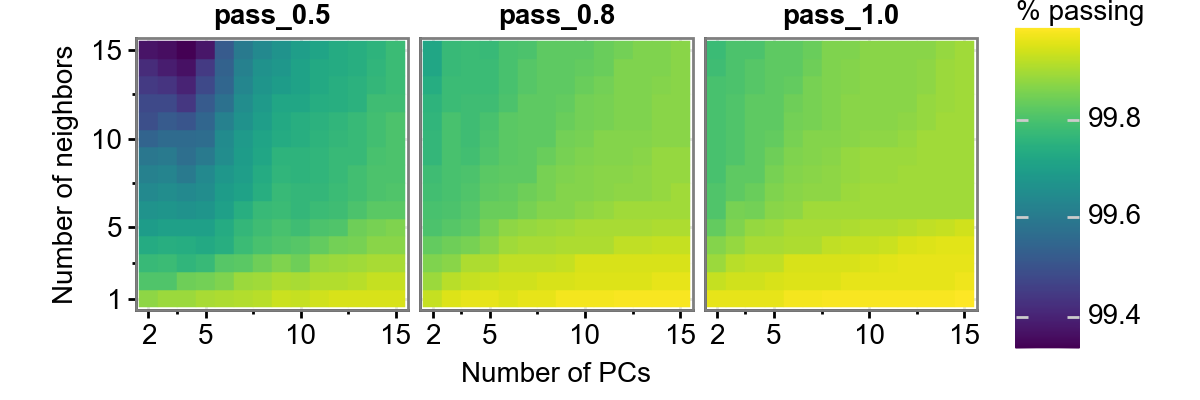

This figure shows us three thresholds: 0.5, 0.8, and 1.0. Additionally, it varies the number of neigbors and the number of PCs considered. We can see this, for this dataset, the number of neighbors has a bigger impact than the number of PCs considered. Additionally, the percentage of images passing QC does not vary too dramatically (approximately 99.4-99.8%), so we should be reasonably safe to use a number of settings. Again, make sure you agree with the images that were removed, this is just an automated way of flagging potentially low quality images.
